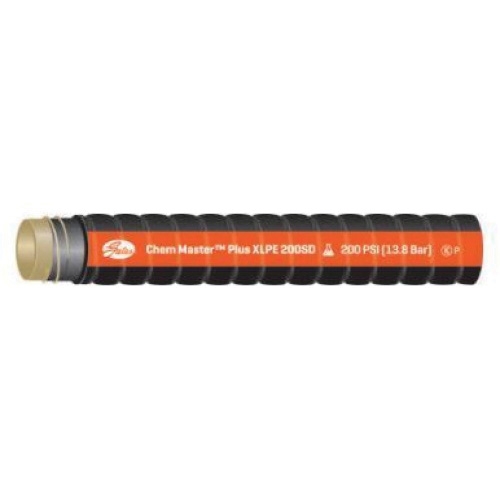

Gates® Chem Master™ Plus Mustang® 4695-0001 Black Cross-Linked Polyethylene Chemical Hose, 2 in, 1 ft L, 200 psi

Gates® 4695-0001

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • ARGPN: MUSTANGBLK200
  • MPN: 4695-0001
  • UPC: 072053650488
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Gates® Chem Master™ Plus Chemical Hose, Series: Mustang®, Nominal Size: 2 in, 2.54 in OD, 2 in ID, 1 ft Length, 200 psi, Material Construction: Cross-Linked Polyethylene, Type P EPDM Cover, Construction: Synthetic, High-Tensile Textile Cord with Steel Wire Helix, Black, 9 in Bend Radius, Resistance Properties: Chemical, -40 deg F Low, 250 deg F High

Bend Radius      :      9 in
Color      :      Black
Construction      :      Synthetic, High-Tensile Textile Cord with Steel Wire Helix
Cover Material      :      Type P EPDM
Inside Diameter      :      2 in
Length      :      100 ft
Material      :      Polyethylene
Material Construction      :      Cross-Linked Polyethylene
Nominal Size      :      2 in
Outside Diameter      :      2.54 in
Pressure Rating      :      200 psi
Product Type      :      Chemical Hose
Resistance Properties      :      Chemical
Series      :      Mustang®
Sub Brand      :      Chem Master™ Plus
Temperature High      :      250 deg F
Temperature Low      :      -40 deg F

Chem Master hoses have specially compounded tube constructions designed to handle up to 1200 different acids and bases. Gates has perfected the use of Gatron modified cross-linked polyethylene in its Chem Master Plus and XTreme offerings. This feature provides great hose-to-coupling interface strength as well as temperature limits of up to 300 deg F.

  • Type K (Gatron™ modified cross-linked polyethylene) tan, high chemical-resistant tube
  • Type P (EPDM) black corrugated with orange stripe cover
  • 4:1 design factor

Applications: For bulk tank truck, barge, ship or storage tank transfer
