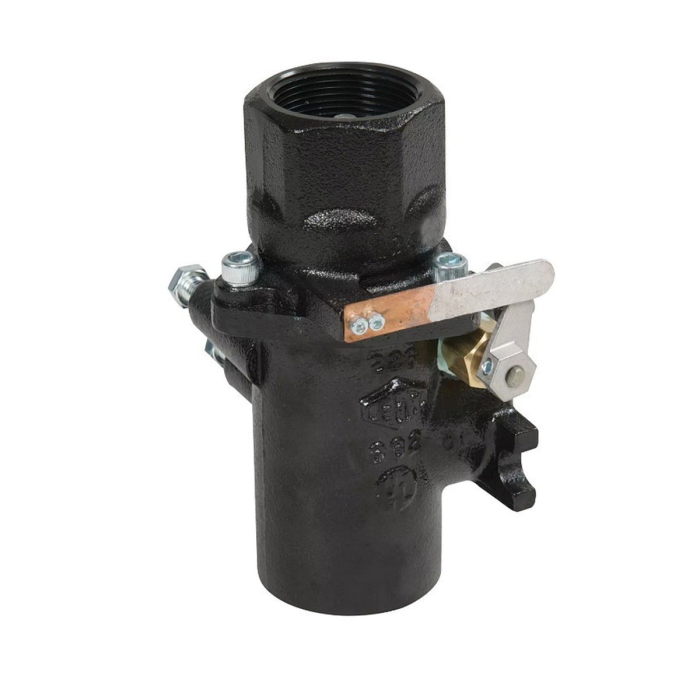

EBW® 662501902 E-Coated Cast Iron Double Poppet Shear Valve, 1-1/2 in FPT

EBW® 662501902

  • Manufacturers: Franklin Fueling Systems
  • Brand Name: EBW®
  • ARGPN: 662501902
  • MPN: 662501902
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

EBW® Double Poppet Shear Valve, Nominal Size: 1-1/2 in, Connection Type: FPT, Material Construction: Cast Iron, Stainless Steel Trim, FKM Seal, Finish: E-Coated

Connection Type      :      FPT
Finish      :      E-Coated
Material      :      Malleable Iron
Material Construction      :      Cast Iron
Nominal Size      :      1-1/2 in
Product Type      :      Poppet Shear Valve
Seal Material      :      FKM
Trim Material      :      Stainless Steel

EBW® product shear valves immediately stop product flow in the event of fire or collision at the dispenser. A patented adapter shears upon impact, causing the poppet to seal on the valve body, preventing fuel spillage. If fire occurs, a fusible link releases the fulcrum arm, engaging the poppet.

  • Single and double poppet
  • The valve can be boss or U-bolt-mounted
  • Fusible link closes poppet in the event of a fire 165 deg F
  • Main poppet seals in valve body, preventing accidents when replacing adapters
  • AGB compatible (E-85, gasoline and biodiesel)
  • Easy to replace adapters slide on and off valve base without lifting the dispenser

Prop Warning ATEX Compliant|NFPA 30A (No Suggestions) 13ATEX9035U|UL 842A|UL 842B|ULC Listed

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/EBW_662501902_CAT.pdf
  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/EBW_662501902_SS.pdf
  • pdfInstallation Instructions https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/EBW_662501902_II.pdf
