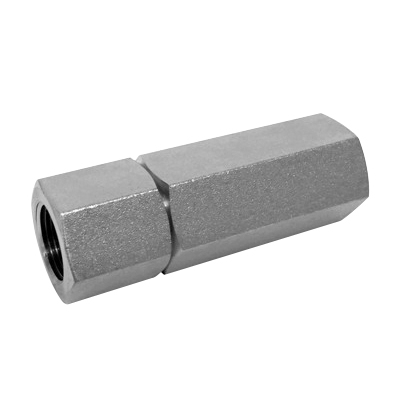

Dynamic Fluid Components HSP Carbon Steel Hard Seat Check Valve, #4 SAE ORB, 5000 psi

Dynamic Fluid Components HSP-1001-4-5

  • Manufacturers: Dynamic Fluid Components
  • Brand Name: Dynamic Fluid Components
  • ARGPN: HSP-1001-4-5
  • MPN: HSP-1001-4-5
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Dynamic Fluid Components Hard Seat Check Valve, Series: HSP, Nominal Size: #4, Connection Type: SAE ORB, 6 gpm, Material Construction: Carbon Steel, 2.56 in Length, 0.87 in Width, 5000 psi

Connection Type      :      SAE ORB
Flow Rate      :      6 gpm
Length      :      2.56 in
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      #4
Pressure Rating      :      5000 psi
Product Type      :      Check Valve
Series      :      HSP
Width      :      0.87 in
  • 5 lb cracking pressure
  • Metal-to-metal seat
