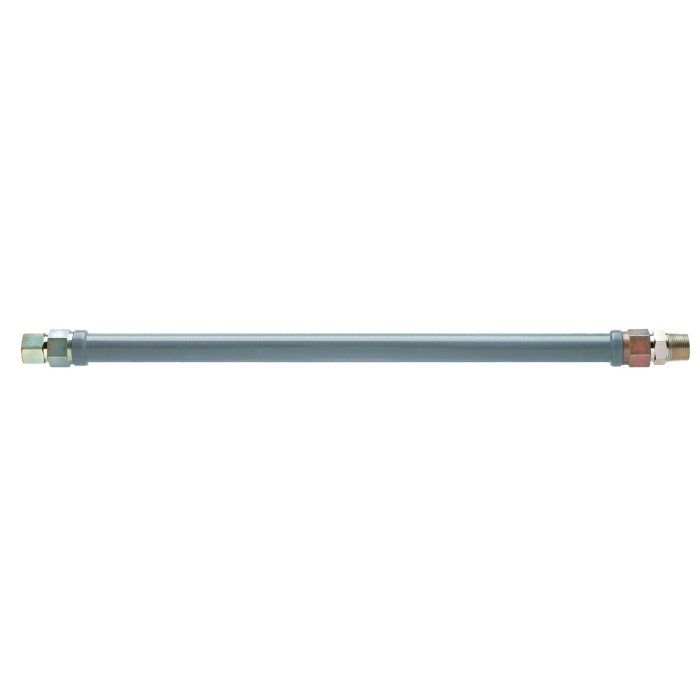

Dormont® 31 Series Gray 304 Stainless Steel Flexible Gas Connector, 1/2 in IPS Male Flare, 24 in L

Dormont® 31-3131-24

  • Manufacturers: Watts Water Technologies
  • Brand Name: Dormont®
  • ARGPN: 31-3131-24
  • MPN: 31-3131-24
  • UPC: 662447047408
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Dormont® Flexible Gas Connector, Series: 31, Nominal Size: 1/2 in IPS, Connection Type: Male Flare, 5/8 in OD, 24 in Length, 0.5 psi, Material Construction: 304 Stainless Steel, Gray, -40 deg F Low, 150 deg F High, For Use With: Stationary Outdoor Backup/Standby Generator

Color      :      Gray
Connection Type      :      Male Flare
For Use With      :      Stationary Outdoor Backup/Standby Generator
Length      :      24 in
Material      :      Stainless Steel
Material Construction      :      304 Stainless Steel
Nominal Size      :      1/2 in IPS
Outside Diameter      :      5/8 in
Pressure Rating      :      0.5 psi
Product Type      :      Connector
Series      :      31
Temperature High      :      150 deg F
Temperature Low      :      -40 deg F

Applications: For residential, indoor and outdoor use

Prop Warning AGA Rated|ANSI Z223.1/Z21.24/Z21.75 Specified|CSA 6.10/6.27 Certified|cCSAus Certified|IFGC Section 411.1 Standard|NFPA 54 Standard|UMC Section 1313.0 Standard|UPC Section 1212.0 Listed|2006 Municipal Specification

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dormont_31-3131-18_CAT.pdf
  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dormont_31-3131-18_SS.pdf
  • pdfInstallation Instructions https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dormont_31-3131-24_II.pdf
