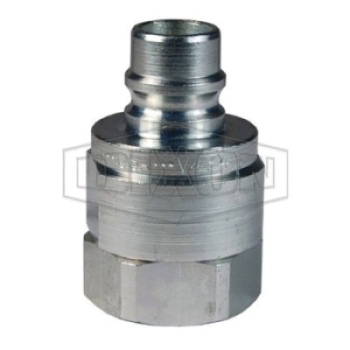

Dixon® Snap-Tite H/IH Interchange Valved Plug, Series: V, Connection Type 1: Quick Disconnect, Connection Size 1: 1-1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1-1/2 in, Thread Size 2: 1-1/2-11-1/2, Hex Size: 2-1/2 in, 1500 psi, Material Construction: Steel, Dimensions: 2.74 in OD x 3.35 in L, -40 to 250 deg F
| Connection Size 1 |
: |
1-1/2 in |
| Connection Size 2 |
: |
1-1/2 in |
| Connection Type 1 |
: |
Quick Disconnect |
| Connection Type 2 |
: |
NPTF |
| Dimensions |
: |
2.74 in OD x 3.35 in L |
| Gender 2 |
: |
Female |
| Hex Size |
: |
2-1/2 in |
| Material |
: |
Steel |
| Material Construction |
: |
Steel |
| Pressure Rating |
: |
1500 psi |
| Series |
: |
V |
| Shape |
: |
Plug |
| Temperature Rating |
: |
-40 to 250 deg F |
| Thread Size 2 |
: |
1-1/2-11-1/2 |
- General-purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
- Steel nipples are machined from high-strength steel and induction hardened
- Interchangeable to MIL-C-51234
- Snap-Tite H and Faster TNV
Applications: For construction, food service, manufacturing, military, oil field, offshore and petrochemical
Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2VF2SSE_CAT.pdf
-
