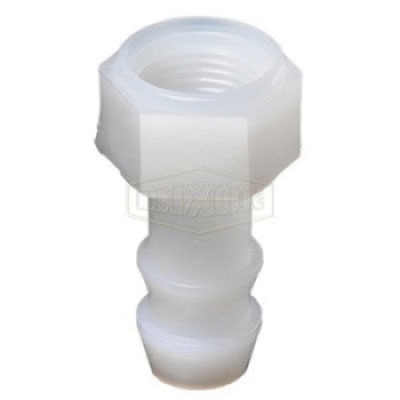

Dixon® Tuff-Lite™ TPF22 White Nylon Push-On Insert, 1/4 in Hose Barb x 1/4 in FNPT

Dixon® TPF22

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: TPF22
  • MPN: TPF22
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Tuff-Lite™ Push-On Insert, Connection Type 1: Hose Barb, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Hex Size: 1/4 in, Material Construction: Nylon, White, Dimensions: 1-1/2 in L

Color      :      White
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Hose Barb
Connection Type 2      :      NPT
Dimensions      :      1-1/2 in L
Gender 2      :      Female
Hex Size      :      1/4 in
Material      :      Nylon
Material Construction      :      Nylon
Shape      :      Insert
Sub Brand      :      Tuff-Lite™
  • No clamps are needed when these fittings are used with push-on hose

Safety Notes: Nylon should not be used with compressed gas.

  • Nylon fittings should not be used with acid-based fertilizers, bromine, chlorine, fluorine, hydrochloric acid, iodine, nitric acid, phosphoric acid, sulfuric acid or xylene.
  • Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_TPF22_SS.pdf
    • pdfSDS https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_TPF22_SDS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_TPF22_TD.pdf
