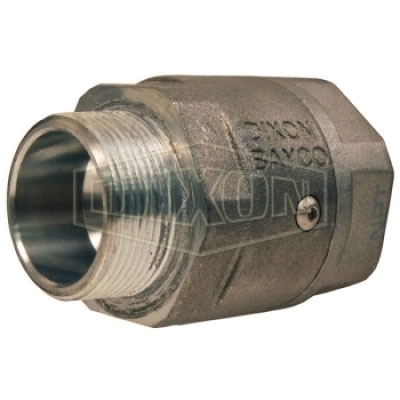

Dixon® SWMF125 Bayloy Heavy-Duty Hose Swivel, 1-1/4 in MNPT x 1-1/4 in FNPT

Dixon® SWMF125

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: SWMF125
  • MPN: SWMF125
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Heavy-Duty Hose Swivel, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 1-1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1-1/4 in, 150 psi, Material Construction: Bayloy

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type      :      NPT~NPT
Connection Type 1      :      NPT
Connection Type 2      :      NPT
Fitting Type      :      Hose Swivel
Gender 1      :      Male
Gender 2      :      Female
Material      :      Bayloy
Material Construction      :      Bayloy
Pressure Rating      :      150 psi
Shape      :      Other
  • Heavy-duty internal thrust bearing and anti-friction seal design ensures swiveling at -40 deg F
  • Can be lubricated without disassembly by using the optional grease fitting kit
  • Hardened carbon steel swivel ball race
  • Through hardened chrome steel ball bearings
  • Buna/PTFE seal

Applications: Used to connect to NPT threaded hose and nozzle connections

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_14MPHRL100_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_SWMF125_SS.pdf
