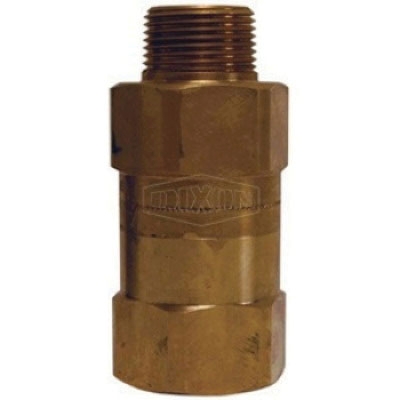

Dixon® SCV Brass Safety Check Valve, 3/4 in NPT x Hose, 350 psi, 92 - 108 scfm

Dixon® SCVM6

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: SCVM6
  • MPN: SCVM6
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Safety Check Valve, Series: SCV, Nominal Size: 3/4 in, Connection Type: NPT x Hose, 92 - 108 scfm, Material Construction: Brass, 3-9/16 in Width, 250 deg F, 350 psi

Connection Type      :      NPT x Hose
Flow Rate      :      92 - 108 scfm
Material      :      Brass
Material Construction      :      Brass
Nominal Size      :      3/4 in
Pressure Rating      :      350 psi
Product Type      :      Check Valve
Series      :      SCV
Temperature Rating      :      250 deg F
Width      :      3-9/16 in
  • High-flow valve to provide optimum performance
  • Controls excess air flow (SCFM) in only one direction
  • Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip
  • Solid brass body and valve
  • Stainless steel spring and roll pin
  • Conforms to OSHA regulation 1926.302 (b) seven requiring a safety device at the source of the air supply and at branch air lines

Applications: Used in temporary plant/factory air lines, construction sites, shipyards or utilities

Safety Notes: Not for use in applications where 100% of the available air is required, i.e. sand blast, pile driving rigs, expansion joint blow down pipes, etc.

  • Does not prevent backflow.
  • Prop Warning OSHA 1926.302 (b) (7) Approved | Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_SCVL8_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_SCVL8_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_SCVL8_TD.pdf
