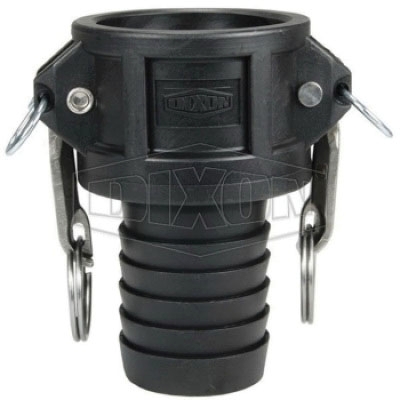

Dixon® PPC50 Polypropylene Cam and Groove Coupler, 3/4 in Female Type C x 1/2 in Hose Shank

Dixon® PPC50

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: PPC50
  • MPN: PPC50
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Cam and Groove Coupler, Connection Type 1: Type C, Gender 1: Female, Connection Size 1: 3/4 in, Connection Type 2: Hose Stem, Connection Size 2: 1/2 in, 125 psi, Material Construction: Polypropylene, Dimensions: 1-11/16 in Dia x 2-15/32 in L, 70 deg F

Connection Size 1      :      3/4 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Type C
Connection Type 2      :      Hose Stem
Dimensions      :      1-11/16 in Dia x 2-15/32 in L
Gender 1      :      Female
Material      :      Polypropylene
Material Construction      :      Polypropylene
Pressure Rating      :      125 psi
Shape      :      Coupler
Temperature Rating      :      70 deg F
  • 304 stainless steel handles
  • EPDM gasket
  • 304 stainless steel pins

Safety Notes: Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.

  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.
  • Polypropylene cam and groove should not be mixed with metal fittings.
  • Not recommended for use with PTFE gaskets.
  • Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_PPC50_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_PPC50_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_PPC50_TD.pdf
