Dixon® BSB100 BSB100

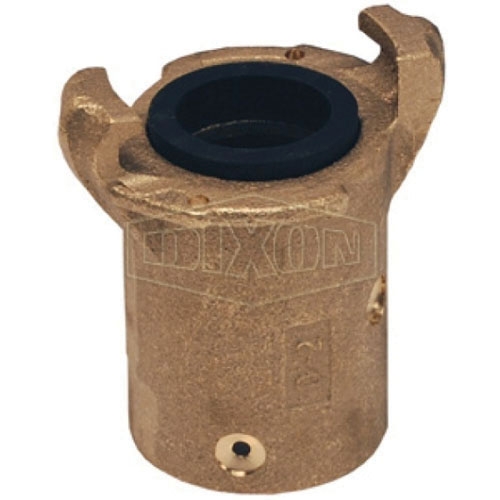

Dixon® King™ BSB100 Brass Sand Blast Coupling, 1 in Quick Disconnect x 1 in Hose

  1. pin-int

Dixon® King™ Sand Blast Coupling, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: Hose, Connection Size 2: 1 in, 110 psi, Material Construction: Brass, Dimensions: 3-7/16 in L x 3-5/16 in W, 70 deg F, For Use With: Sand Blast Hose

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Hose
Dimensions      :      3-7/16 in L x 3-5/16 in W
For Use With      :      Sand Blast Hose
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      110 psi
Shape      :      Coupling
Sub Brand      :      King™
Temperature Rating      :      70 deg F
  • Supplied with screws

Instructions: Ends of hose must be cut square to fit snug against metal end.

  • Holding hose tight to end of fitting, insert screws and turn in full, putting screw 180 deg from first to ensure best centering.
  • After all screws have been placed, check tube opposite screws to be sure screws have not penetrated completely through.
  • On quick couplings, insert safety clips.

    Safety Notes: Abrasive blasting equipment must have hose safety cables or hose coupling safety clips installed.

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_BSB100_SS.pdf
