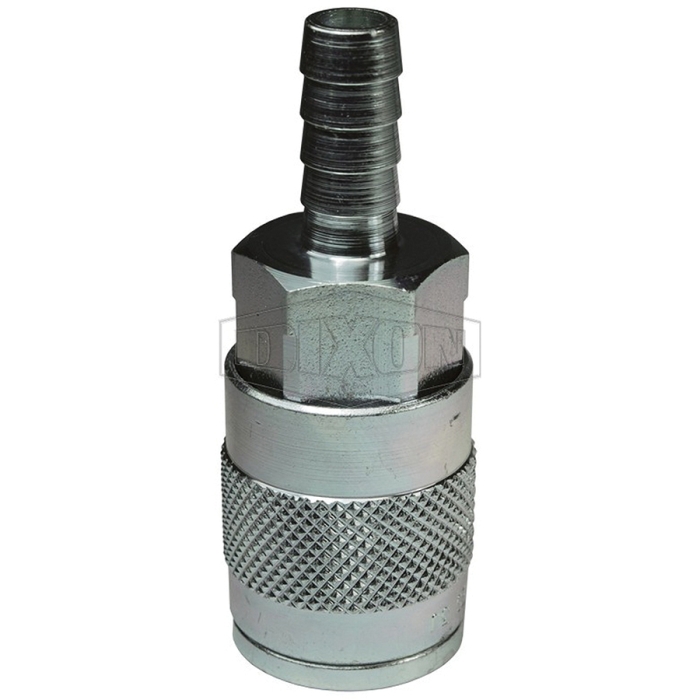

Dixon® F Series Trivalent Chrome-Plated Steel Pneumatic Manual Industrial Interchange Coupler, 1/2 in Quick Disconnect x 3/4 in Hose Barb

Dixon® 4FS6

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: C10-46
  • MPN: 4FS6
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Pneumatic Manual Industrial Interchange Coupler, Series: F, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: Hose Barb, Connection Size 2: 3/4 in, 500 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 3.49 in L, -40 to 250 deg F

Connection Size 1      :      1/2 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Hose Barb
Dimensions      :      3.49 in L
Finish      :      Trivalent Chrome-Plated
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      500 psi
Series      :      F
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Nitrile (Buna-N) seals are standard
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel sleeve and steel tubular valve
  • Foster 3, 4, 5 and 6 Series
  • Parker 20 Series manual interchange
  • Hansen 1000, 400 and 500

Safety Notes:

  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination.
  • Consult hose manufacturer's catalog for hose end connection ratings.
  • If in doubt, test under controlled conditions for suitability to application.
  • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov|RoHS Compliant
