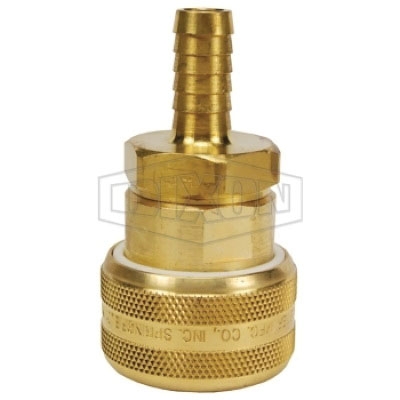

Dixon® Air Chief Industrial Automatic Coupler, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: Hose Barb, Connection Size 2: 1/2 in, Hex Size: 1-5/16 in, 300 psi, Material Construction: Brass, -40 to 250 deg F
| Connection Size 1 |
: |
3/4 in |
| Connection Size 2 |
: |
1/2 in |
| Connection Type 1 |
: |
Quick Disconnect |
| Connection Type 2 |
: |
Hose Barb |
| Hex Size |
: |
1-5/16 in |
| Material |
: |
Brass |
| Material Construction |
: |
Brass |
| Pressure Rating |
: |
300 psi |
| Shape |
: |
Coupler |
| Temperature Rating |
: |
-40 to 250 deg F |
- Automatic push-to-connect
- Couplers shut-off when disconnected
- Air chief industrial couplers are the popular industrial design and will interchange with many other makes
Safety Notes: For air service only.
Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.
Mil-A-A-59439/C-4109F Specified | Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_A1S1B_CAT.pdf
-
Cut Sheet
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DC7045_SS.pdf
