Dixon® 1520509K
  1. pin-int

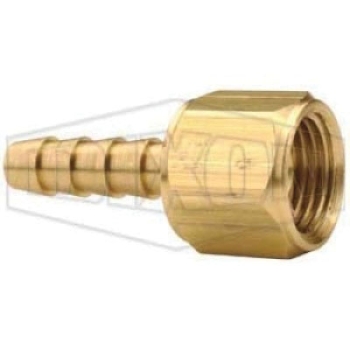

Dixon® 1520509K Brass Oxygen Coupling, 5/16 in Hose Shank x 9/16 in Female Threaded

Dixon® 1520509K

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: WHRH-05-09
  • MPN: 1520509K
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Oxygen Coupling, Connection Type 1: Hose Stem, Connection Size 1: 5/16 in, Connection Type 2: Threaded, Gender 2: Female, Connection Size 2: 9/16 in, Thread Size 2: 9/16-18 UNF, Hex Size: 11/16 in, Material Construction: Brass

Connection Size 1      :      5/16 in
Connection Size 2      :      9/16 in
Connection Type 1      :      Hose Stem
Connection Type 2      :      Threaded
Gender 2      :      Female
Hex Size      :      11/16 in
Material      :      Brass
Material Construction      :      Brass
Shape      :      Coupling
Thread Size 2      :      9/16-18 UNF
  • It is recommended that hose assemblies be fabricated using hose clamps or crimped ferrules in conjunction with hose barbs
