CSI R525-8X8
  1. pin-int

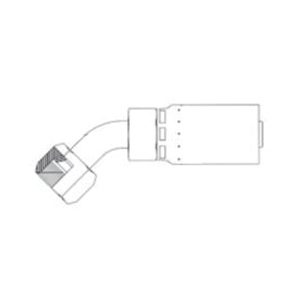

CSI R5 Series Trivalent Zinc-Plated Female SAE 45 deg/37 deg JIC Swivel Crimp Hose 45 deg Elbow, 13/32 in x 1/2 in

CSI R525-8X8

  • Manufacturers: Couplamatic Systems Inc
  • Brand Name: CSI
  • ARGPN: R525-8X8
  • MPN: R525-8X8
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

CSI Crimp Hose 45 deg Elbow, Series: R5, Connection Type 1: Hose, Connection Size 1: 13/32 in, Connection Type 2: SAE 45 deg/37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 7/8 in, Finish: Trivalent Zinc-Plated, For Use With: 100R5 58 MBA and HTR5 Hi-Temp R5 Textile Cover Hoses, Packaging Quantity: 10 PK

Connection Size 1      :      13/32 in
Connection Size 2      :      1/2 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      SAE 45 deg/37 deg JIC Swivel
Finish      :      Trivalent Zinc-Plated
Fitting Type      :      45 deg Elbow
For Use With      :      100R5 58 MBA and HTR5 Hi-Temp R5 Textile Cover Hoses
Gender 2      :      Female
Hex Size      :      7/8 in
Nominal Size      :      1/2 in
Packaging Quantity      :      10 PK
Series      :      R5
Shape      :      45 deg Elbow
Thread Size 2      :      3/4-16

Hydraulic hose ends for 100R5 textile cover hose (58 MBA and HTR5 hi-temp R5). The R5 Series couplings are compatible with virtually all crimp machines and can be crimped with a standard straight crimp or bubble crimp.

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/CSI_R5208X8_CAT.pdf
