CSI 6R5-6FS
  1. pin-int

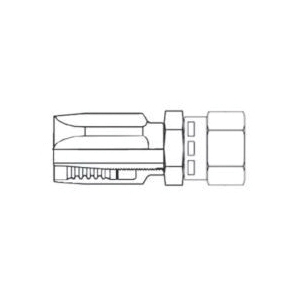

CSI 6R5-6FS Trivalent Zinc-Plated Female SAE 45 deg Swivel 100R5 Field Attachable Reusable Hose End, 5/16 in x 3/8 in

CSI 6R5-6FS

  • Manufacturers: Couplamatic Systems Inc
  • Brand Name: CSI
  • ARGPN: 6R5-6FS
  • MPN: 6R5-6FS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

CSI 100R5 Field Attachable Reusable Hose End, Connection Type 1: Hose, Connection Size 1: 5/16 in, Hose Dash Size: 05, Connection Type 2: SAE 45 deg Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 5/8-18, Finish: Trivalent Zinc-Plated, For Use With: 58MBA 100R5 and HTR5 High-Temp 100R5 Hoses

Connection Size 1      :      5/16 in
Connection Size 2      :      3/8 in
Connection Type      :      Hose~SAE Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      SAE 45 deg Swivel
Finish      :      Trivalent Zinc-Plated
Fitting Type      :      Hose End
For Use With      :      58MBA 100R5 and HTR5 High-Temp 100R5 Hoses
Gender 2      :      Female
Hose Dash Size      :      05
Nominal Size      :      3/8 in
Shape      :      Straight
Thread Size 2      :      5/8-18
  • Non-mandrel and no skive
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/CSI_R5208X8_CAT.pdf
