Coxreels SM17-3-250 SM17-3-250

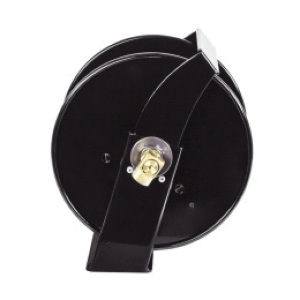

Coxreels 1175 Powder-Coated Steel Hand Crank Hose Reel, 3/8 in ID x 5/8 in OD, 250 ft L, 4000 psi

  1. pin-int

Coxreels Hand Crank Hose Reel, Series: 1175, 250 ft Length Hose, 3/8 in Hose Inside Diameter, 5/8 in Hose Outside Diameter, Connection Type: NPT, Inlet Size: 1/2 in, Outlet Size: 3/8 in, Material Construction: Steel, Finish: Powder-Coated, Black, Wall Mount, -40 to 225 deg F, 4000 psi, Dimensions: 17 in L x 19 in W x 18-1/2 in H

Color      :      Black
Connection Type      :      NPT
Dimensions      :      17 in L x 19 in W x 18-1/2 in H
Finish      :      Powder-Coated
Hose Inside Diameter      :      3/8 in
Hose Length      :      250 ft
Hose Outside Diameter      :      5/8 in
Inlet Size      :      1/2 in
Material      :      Steel
Material Construction      :      Steel
Mounting Type      :      Wall
Outlet Size      :      3/8 in
Pressure Rating      :      4000 psi
Product Type      :      Hose Reel
Series      :      1175
Temperature Rating      :      -40 to 225 deg F

Coxreels SM Series swivel mount hand crank hose reels swivel on demand in the direction your work takes you and locks in eight different positions as desired. Like the 100 Series, the SM Series is lightweight, compact and versatile with a working pressure up to 4000 psi. The "U" shaped base and hose control bar together add strength and rigidity while keeping the hose from slipping off the side discs.

  • Professional-grade heavy-duty steel construction
  • Rolled edges and ribbed discs provide strength and safety
  • Machined from solid brass 90 deg full-flow NPT swivel for simple seal maintenance and fast and easy hose installation, no need to remove the reel from its mount
  • Forward-weighted solid one-piece, heavy gauge steel frame design ensures rotation in direction of use
  • Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
  • Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage
  • Unique hose control bar keeps hose from slipping off the disc from any direction
  • Long-lasting, chip-resistant and rust inhibiting CPC powder coat finish, direct hand crank for easy mechanical retraction and optional eight-position mount bracket
  • Made in USA

Applications: Air, chemical fluid transfer, pest control, pressure washer, spraying operation, washdown, water
