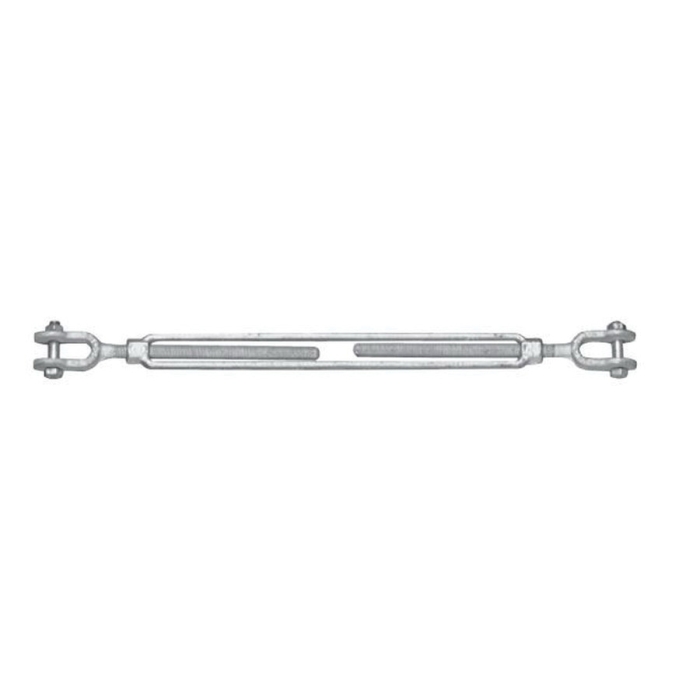

Campbell® C-788-G Hot-Dipped Galvanized Carbon Steel Jaw and Jaw Turnbuckle, 1 in, 10000 lb, 37-7/16 in L

Campbell® 6250524

  • Manufacturers: Apex Tool Group
  • Brand Name: Campbell®
  • ARGPN: 625-0524
  • MPN: 6250524
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Campbell® Jaw and Jaw Turnbuckle, Series: C-788-G, Working Load Limit: 10000 lb, Take-Up: 24 in, 1 in Thread, 37-7/16 in Length, Material Construction: Drop Forged Carbon Steel, Finish: Hot-Dipped Galvanized

Finish      :      Hot-Dipped Galvanized
Length      :      37-7/16 in
Material      :      Steel
Material Construction      :      Drop Forged Carbon Steel
Product Type      :      Turnbuckle
Series      :      C-788-G
Take-Up      :      24 in
Thread Size      :      1 in
Working Load Limit      :      10000 lb
  • 5:1 design factor
  • In loads where there is vibration, lock nuts (jam nuts) should be used to prevent the connection from turning or loosening
  • Jaws on sizes 1/4 - 5/8 in have hex head bolt and nut
  • Made in USA

Applications: Turnbuckles are designed for a static load and are typically used with guy wires

Prop Warning ASTM A153/F-1145, Type 1, Grade 1, Class G Specified|Federal Specification
