Campbell® 5411035
  1. pin-int

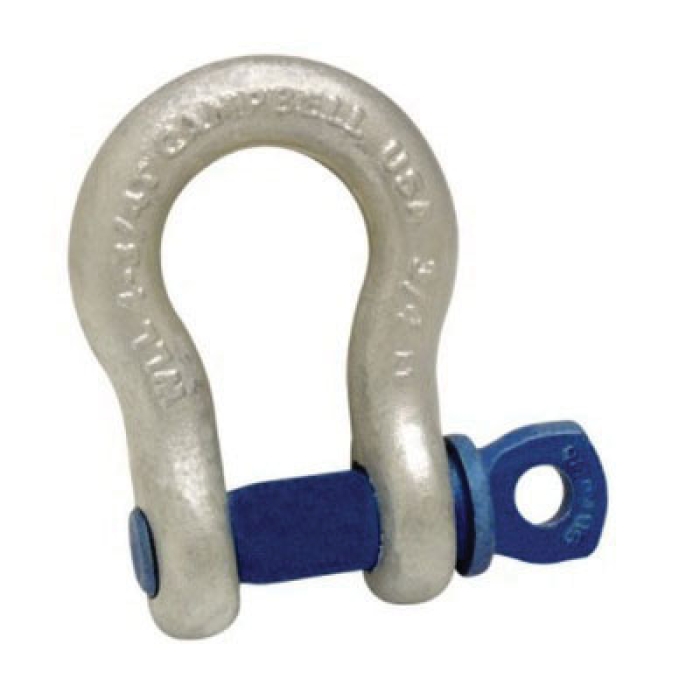

Campbell® C-419-G Galvanized Blue Carbon Steel Screw Pin Anchor Shackle, 5/8 in, 3.25 ton

Campbell® 5411035

  • Manufacturers: Apex Tool Group
  • Brand Name: Campbell®
  • ARGPN: 541-1035
  • MPN: 5411035
  • UPC: 020418076299
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Campbell® Screw Pin Anchor Shackle, Series: C-419-G, Load Capacity: 3.25 ton, Size: 5/8 in, 3/4 in Pin Diameter, Screw Pin, Inside Length: 2-7/16 in, Inside Width: 1-9/16 in, 1-1/16 in Opening, Eye Outer Size: 1-7/16 in, Material Construction: Drop Forged Carbon Steel, Finish: Galvanized, Blue

Color      :      Blue
Eye Outer Size      :      1-7/16 in
Finish      :      Galvanized
Inside Length      :      2-7/16 in
Inside Width      :      1-9/16 in
Load Capacity      :      3.25 ton
Material      :      Steel
Material Construction      :      Drop Forged Carbon Steel
Opening Size      :      1-1/16 in
Pin Diameter      :      3/4 in
Pin Type      :      Screw
Product Type      :      Anchor Shackle
Series      :      C-419-G
Size      :      5/8 in
  • Working load limit, size, manufacture name, date code and USA permanently marked on each shackle
  • Statistically tested for impact-resistance, tensile strength, hardness, ductility and fatigue
  • 6:1 design factor
  • Made in USA

Prop Warning ASME B30.26|ASTM A153|Federal Specification RR-C-271 Type IVA Grade A Class 2

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Campbell_5410835_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Campbell_5410835_TD.pdf
