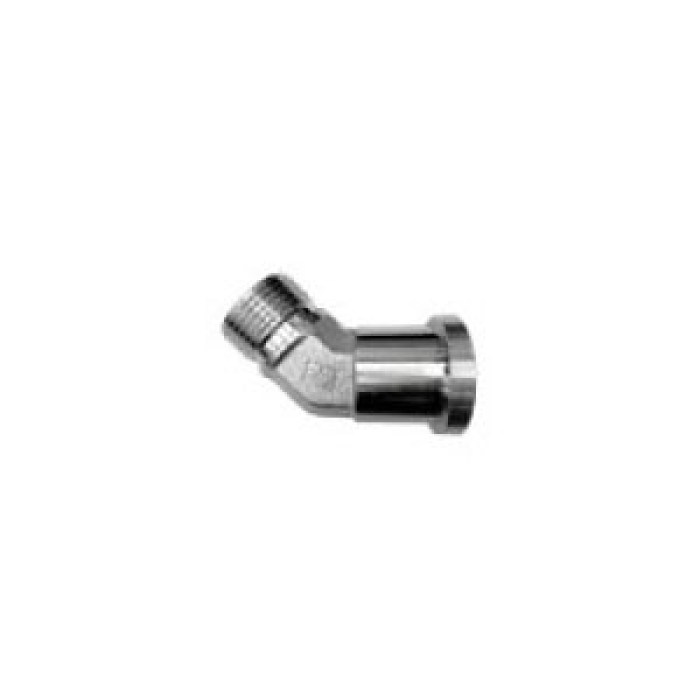

Brennan FS1703-FG Forged Steel 45 deg Elbow, 3/4 in SAE Code 61 Split Flange x 3/4 in Male ORFS

Brennan FS1703-12-12-FG

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • ARGPN: FS1703-12-12
  • MPN: FS1703-12-12-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Brennan 45 deg Elbow, Series: FS1703-FG, Connection Type 1: SAE Code 61 Flange, Connection Size 1: 3/4 in, Connection Type 2: ORFS, Gender 2: Male, Connection Size 2: 3/4 in, Thread Size 2: 1-3/16-12, Hex Size: 1-1/8 in, Material Construction: Forged Steel

Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Type      :      Code 61~ORFS
Connection Type 1      :      SAE Code 61 Flange
Connection Type 2      :      ORFS
Fitting Type      :      45 deg Elbow
Gender 2      :      Male
Hex Size      :      1-1/8 in
Material      :      Steel
Material Construction      :      Forged Steel
Series      :      FS1703-FG
Shape      :      45 deg Elbow
Thread Size 2      :      1-3/16-12

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_C6400-04-04-O_CAT.pdf
