Brennan 2501-16-16-B
  1. pin-int

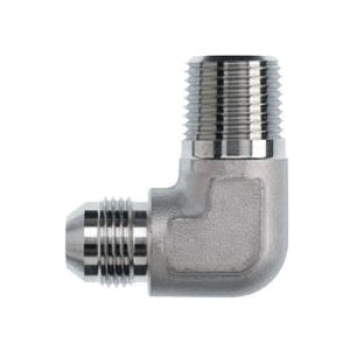

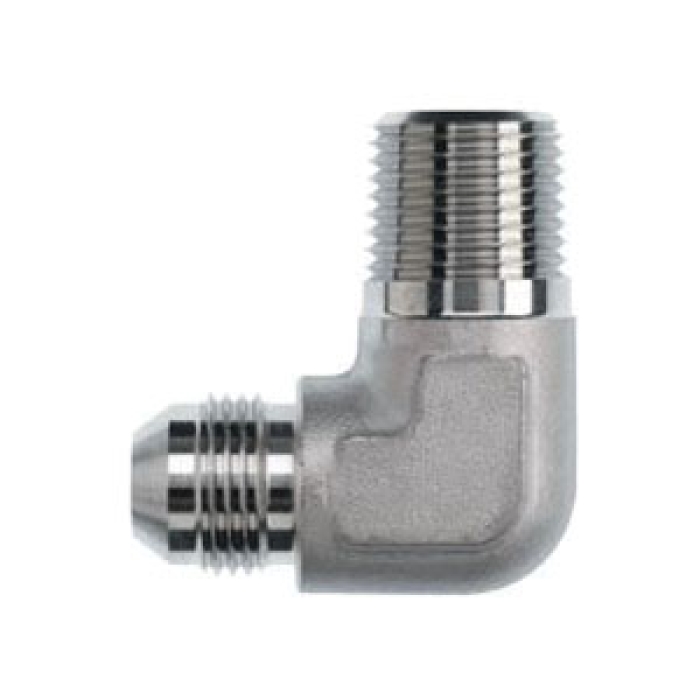

Brennan 2501 Brass 90 deg Elbow, 1 in Male SAE 37 deg JIC x 1 in MNPTF

Brennan 2501-16-16-B

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • ARGPN: 2501-16-16-B
  • MPN: 2501-16-16-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Brennan 90 deg Elbow, Series: 2501, Connection Type 1: SAE 37 deg JIC, Gender 1: Male, Connection Size 1: 1 in, Thread Size 1: 1-5/16-12, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1.312 in, Dimension Standards: SAE 070202, MS 51504, 2600 psi, Material Construction: Brass

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type      :      JIC~NPT
Connection Type 1      :      SAE 37 deg JIC
Connection Type 2      :      NPTF
Dimension Standards      :      SAE 070202, MS 51504
Fitting Type      :      90 deg Elbow
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      1.312 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      2600 psi
Series      :      2501
Shape      :      90 deg Elbow
Thread Size 1      :      1-5/16-12
Thread Size 2      :      1-11-1/2

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_2501-16-16-B_CAT.pdf
