Brennan 1504-02-04-FG 1504-02-04

Brennan 1504-02-04-FG 1504-02-04

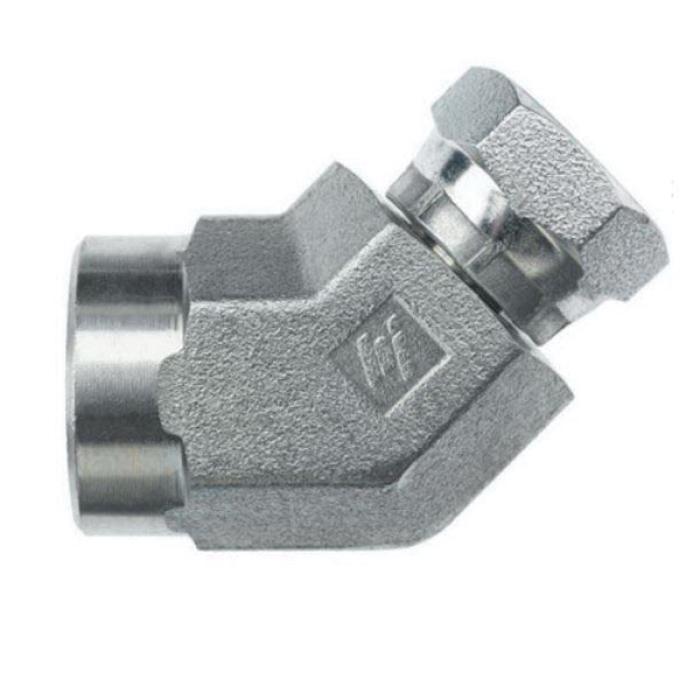

Brennan 1504 Forged Steel 45 deg Elbow, 1/8 in FNPTF x 1/4 in FNPSM Swivel

  1. pin-int

Brennan 45 deg Elbow, Series: 1504, Connection Type 1: NPTF, Gender 1: Female, Connection Size 1: 1/8 in, Thread Size 1: 1/8-27, Connection Type 2: NPSM Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.688 in, Dimension Standards: SAE 140331, 5000 psi, Material Construction: Forged Steel

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/8 in
Connection Size 2      :      1/4 in
Connection Type      :      NPT~NPS
Connection Type 1      :      NPTF
Connection Type 2      :      NPSM Swivel
Dimension Standards      :      SAE 140331
Fitting Type      :      45 deg Elbow
Gender 1      :      Female
Gender 2      :      Female
Hex Size      :      0.688 in
Material      :      Steel
Material Construction      :      Forged Steel
Pressure Rating      :      5000 psi
Series      :      1504
Shape      :      45 deg Elbow
Thread Size 1      :      1/8-27
Thread Size 2      :      1/4-18
