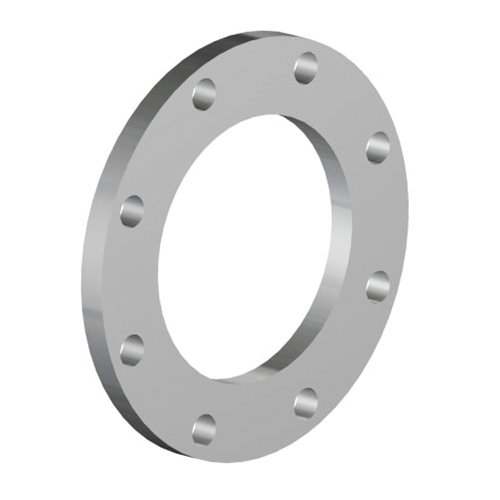

Betts™ WF301MS Steel Welded Flange, 3 in

Betts™ WF301MS

  • Manufacturers: Betts Industries
  • Brand Name: Betts™
  • ARGPN: WF301MS
  • MPN: WF301MS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Betts™ Welded Flange, Connection Size 1: 3 in, 0.44 in Bolt Hole Diameter, 8 -Bolt Hole, 1/4 in Thick Flange, Material Construction: Steel, Dimension Standards: 3-9/16 in ID x 5-5/8 in OD

Bolt Hole Diameter      :      0.44 in
Connection Size 1      :      3 in
Dimension Standards      :      3-9/16 in ID x 5-5/8 in OD
Flange Thickness      :      1/4 in
Material      :      Steel
Material Construction      :      Steel
Number of Bolt Holes      :      8
Shape      :      Flange

Betts weld flanges are designed for use on cargo tanks with bolt-hole patterns in accordance with TTMA recommended practices. Flange performance is dependent on proper weld procedures with an achievable MAWP of 75 psi for steel.
