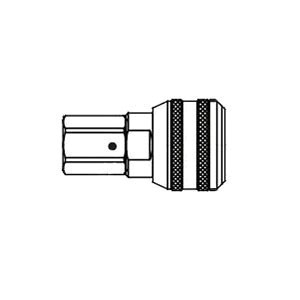

Aeroquip® 3000 Brass Coupling with Sleeve Lock, 1/4 in Female Quick Disconnect x 1/4 in FNPT

Aeroquip® 3000SL

  • Manufacturers: Danfoss Power Solutions
  • Brand Name: Aeroquip®
  • ARGPN: 3000SL
  • MPN: 3000SL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Aeroquip® Coupling with Sleeve Lock, Series: 3000, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, 2000 psi, Material Construction: Brass, Dimensions: 2-25/32 in L, Dimension Standards: ISO 6150 Series B, 70 deg F, For Use With: 3000 Series Plugs

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPT
Dimension Standards      :      ISO 6150 Series B
Dimensions      :      2-25/32 in L
For Use With      :      3000 Series Plugs
Gender 1      :      Female
Gender 2      :      Female
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      2000 psi
Series      :      3000
Shape      :      Coupling
Temperature Rating      :      70 deg F
Thread Size 2      :      1/4-18

Eaton 3000 Series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases and liquids. This series sets the industry standard for pin lock style pneumatic couplings.

  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line
  • Sleeve lock option to protect against accidental disconnection
  • Buna-N seal material

Warranty: 3 Years Limited

Applications: Fluid transfer, general pneumatics, industrial breathing air, maintenance and repair

Prop Warning Mil-A-A-59439 Specified

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_3000SL_CAT.pdf
