Adaptall 9240-06-04
  1. pin-int

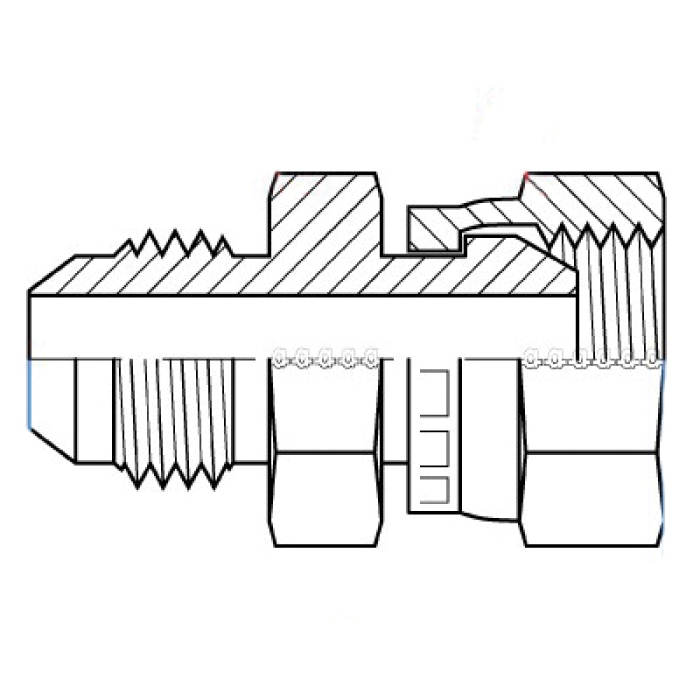

Adaptall 9240 Carbon Steel Straight Adapter, 1/4 in Female BSPP 60 deg Flare Swivel x 3/8 in Male JIC

Adaptall 9240-06-04

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • ARGPN: 9240-06-04
  • MPN: 9240-06-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Adaptall Straight Adapter, Series: 9240, Connection Type 1: BSPP 60 deg Flare Swivel, Gender 1: Female, Connection Size 1: 1/4 in, Thread Size 1: G 1/4-19, Connection Type 2: JIC, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 9/16-18 UNF, Hex Size: 19 x 19 mm, Dimension Standards: BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514, Material Construction: Carbon Steel, 36.8 mm Length

Connection Size 1      :      1/4 in
Connection Size 2      :      3/8 in
Connection Type      :      BSPP Swivel~JIC
Connection Type 1      :      BSPP 60 deg Flare Swivel
Connection Type 2      :      JIC
Dimension Standards      :      BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Fitting Type      :      Straight Adapter
Gender 1      :      Female
Gender 2      :      Male
Hex Size      :      19 x 19 mm
Length      :      36.8 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9240
Shape      :      Straight
Thread Size 1      :      G 1/4-19
Thread Size 2      :      9/16-18 UNF
