Adaptall 9023-04-04
  1. pin-int

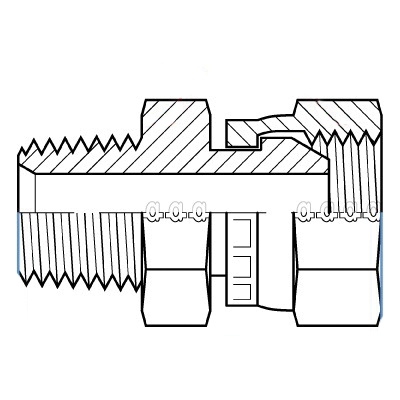

Adaptall 9023 Carbon Steel Straight Adapter, 1/4 in Female BSPP 60 deg Flare Swivel x 1/4 in MNPTF

Adaptall 9023-04-04

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • ARGPN: 9023-04-04
  • MPN: 9023-04-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Adaptall Straight Adapter, Series: 9023, Connection Type 1: BSPP 60 deg Flare Swivel, Gender 1: Female, Connection Size 1: 1/4 in, Thread Size 1: G 1/4-19, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 14 x 19 mm, Dimension Standards: ANSI B1.20.3, BS 5200, ISO 1179, ISO 8434-6, Material Construction: Carbon Steel, 39 mm Length

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type      :      BSPP Swivel~NPT
Connection Type 1      :      BSPP 60 deg Flare Swivel
Connection Type 2      :      NPTF
Dimension Standards      :      ANSI B1.20.3, BS 5200, ISO 1179, ISO 8434-6
Fitting Type      :      Straight Adapter
Gender 1      :      Female
Gender 2      :      Male
Hex Size      :      14 x 19 mm
Length      :      39 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9023
Shape      :      Straight
Thread Size 1      :      G 1/4-19
Thread Size 2      :      1/4-18
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_5070S1206C_CAT.pdf
