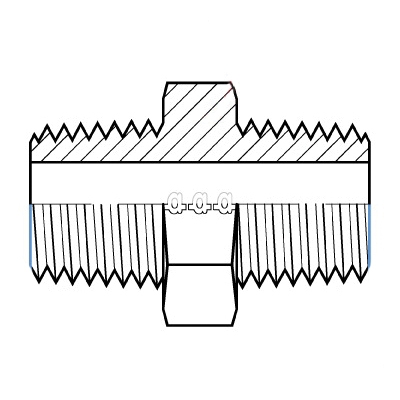

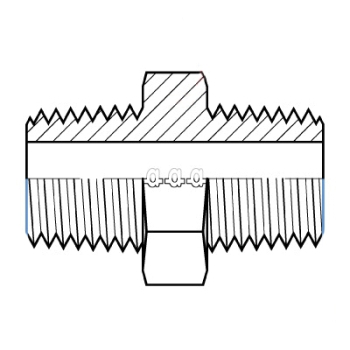

Adaptall 9010 Carbon Steel Straight Nipple, 1/2 in Male BSPT x 1/4 in Male BSPT

Adaptall 9010-08-04

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • ARGPN: 9010-08-04
  • MPN: 9010-08-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Adaptall Straight Nipple, Series: 9010, Connection Type 1: BSPT, Gender 1: Male, Connection Size 1: 1/2 in, Thread Size 1: R 1/2-14, Connection Type 2: BSPT, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: R 1/4-19, Hex Size: 22 mm, Dimension Standards: ISO 7-1, DIN EN 10226-1, Material Construction: Carbon Steel, 46.3 mm Length

Connection Size 1      :      1/2 in
Connection Size 2      :      1/4 in
Connection Type      :      BSPT~BSPT
Connection Type 1      :      BSPT
Connection Type 2      :      BSPT
Dimension Standards      :      ISO 7-1, DIN EN 10226-1
Fitting Type      :      Straight Nipple
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      22 mm
Length      :      46.3 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9010
Shape      :      Nipple
Thread Size 1      :      R 1/2-14
Thread Size 2      :      R 1/4-19
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_5360L-35_CAT.pdf
